Paytia API exception handling

Paytia API exception handling

The Paytia API services generate status update webhook posts to allow the process and status updates to be tracked.

Outside of the standard API posts there is also exception handling required for telephony. Paytia will send update webhooks for status changes as the process processes. Most can be ignored. However (see)

Confirming the payment amount was correct

When the customer presses 1 to confirm the amount was correct, the webhook sent is

payment_stage=amount_verify&reference_id=reference_id_is_number_106&amount_verify=accepted

If the customer presses 2 to say amount was wrong, the webhook sent is

success=0&reference_id=reference_id_is_number_113

Customer call leg drops:

success=0&reference_id=ref_new34_f1Ta11234521211&callhangup=customer

This denotes a customer hanging up the call leg

Agent call leg drops:

success=0&reference_id=ref_new34_f1Ta11234521211121&callhangup=merchant

This denotes an agent hanging up the call leg



Customer presses *

success=0&reference_id=ref_new34_f1Ta112345212118&custabort=1

 The customer has reset the payment session and is speaking to the agent again


Agent presses *

success=0&reference_id=ref_new34_f1Ta112345212118&agentabort=1

The agent has reset the payment session and is speaking to the customer again



Note: In these scenarios you can consider the payment request into Paytia as failed and needs to be started again so you have a new uniqueID for the session.


Agent/User licences and assigned payment types

If you send a post in to Paytia with a specified 'agentid' value and that user doesn't have the correct payment type rights assigned for the value passed in 'transaction_flag' the Paytia will return a warning in the 'statusDescription' field

{

    "httpStatus": false,

    "reference_id": "reference_id_is_number_144",

    "status": {

        "statusCode": 400,

        "statusDescription": "The agent you are using doesn't have the right to use transaction type 3."

    }

}


If you load the iframe from here then the agent will not be able to procced with the payment.

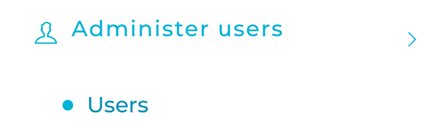

User rights are controlled in the Paytia administration portal Administer users > Users menu.


By clicking the Edit setting button, you can see the rights assigned to the

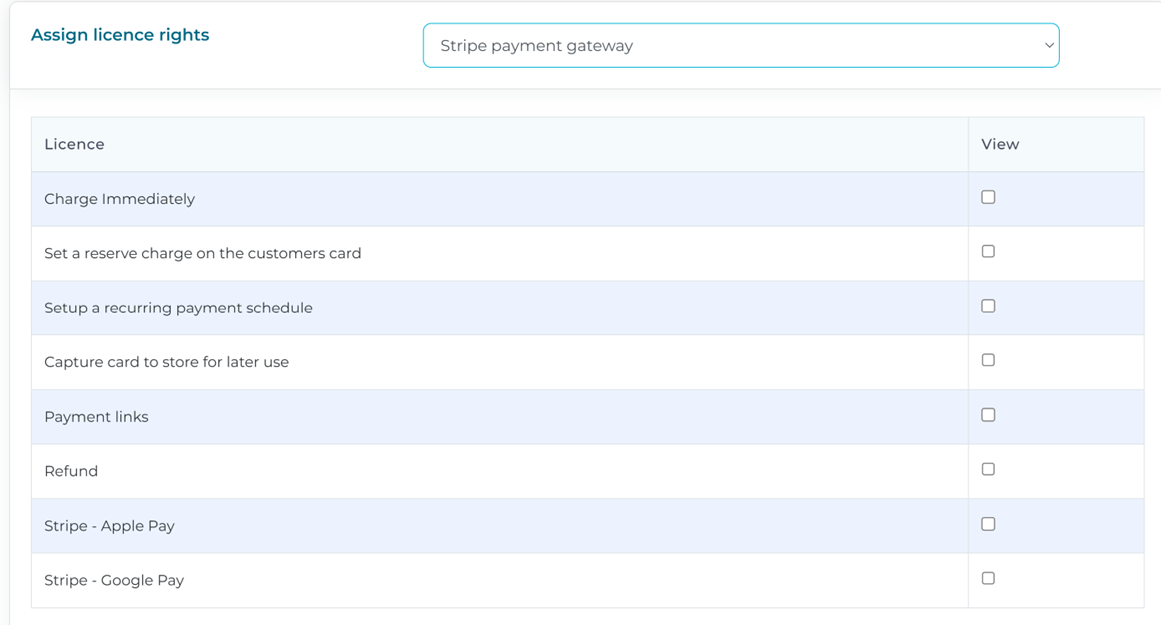

The View column allows you to tick the accepted payment types the user can utilise.
