Technical Overview, Configuration, and Test Guide

1. Overview

The Paytia Proxy Gateway is a flexible payment gateway that enables organisations to securely pass captured payment data from their environment to third-party systems using a fully customisable JSON payload.

Instead of hard-coding payment fields or adapting your application to a fixed gateway schema, the Proxy Gateway allows you to define exactly what data Paytia posts, where it is posted, and how it is structured.

Sensitive card data is injected at runtime using secure variable replacement, ensuring cardholder data is never exposed to your systems or users.

2. Key Capabilities

• Secure capture and handling of card data

• Runtime variable substitution for sensitive fields

• Fully customisable JSON metadata structure

• Support for authenticated outbound API calls

• Optional encryption of outbound payloads

• Reduced PCI-DSS scope by removing card data handling from your environment

• Compatible with CRMs, ERPs, donation platforms, and bespoke APIs

3. Supported Sensitive Data Variables

The following variables are supported and must be used exactly as shown. Paytia replaces these values at runtime after secure card capture.

These variables can be placed anywhere within the metadata JSON structure.

4. Gateway Availability

The Proxy Gateway is:

• Included in supported Paytia packages by default

• Or available as an additional gateway on request

Once enabled, configuration is performed through the Paytia Administration Portal.

5. Authentication Configuration

To allow Paytia to authenticate with your receiving system, authentication settings must be configured.

Navigation Path

Login as an Administration user
→ Settings
→ Auth Configuration

Configuration Page URL

https://{subdomain}.paytia.com/portal/merchant/authconfiguration

Authentication Parameters Example

API URL

https://lionheartsystemsinc--elmsfull.sandbox.my.salesforce.com/services/oauth2/token

Body Type Options

• form-data

• x-www-form-urlencoded

• json

Request Headers

Parameters

Credentials should be securely stored and rotated in line with your security policy.

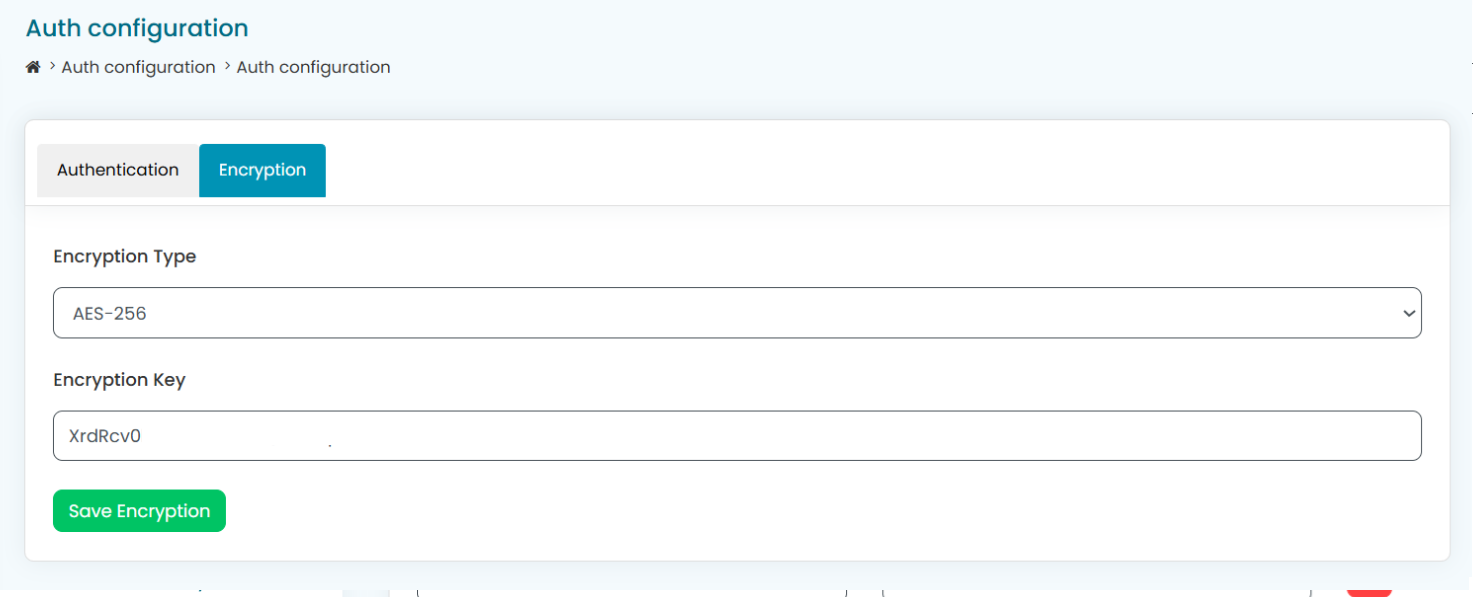

6. Encryption Configuration

Outbound payloads can be encrypted before being posted to the target system.

Supported Encryption Types

1. AES-256

2. RSA

3. BCRYPT

4. JWT

Example Encryption Settings

• Encryption Type: AES-256

• Encryption Key:

XrdRcv0bfY95mMAAAAAAAAAAAAAAvOHcZvF4zoXzE7d

The receiving system must be able to decrypt the payload using the same method and key.

7. PSP Post URL Configuration

This defines the endpoint that will receive the completed payload after variable substitution and encryption.

Field Name: psp_posturl

Example

https://qxAAAAAAA98AAAA.execute-api.us-east-1.amazonaws.com/AAAA5

8. Metadata Payload Structure

The metadata field contains the entire JSON payload that Paytia will post to your endpoint. This structure is fully controlled by you.

Example Metadata (JSON)

{
  "programId": "a0AOJ00000Av9s12AB",
  "sourceCC": "Phone Order",
  "sourceDetail": "Call Centre",
  "sourceName": "A365",
  "contactInfo": {
    "firstName": "Bonita",
    "lastName": "Cooke",
    "email": "ian.cooke@answwer365.ca",
    "primaryPhone": "403-771-1252",
    "secondaryPhone": "",
    "mobilePhone": "",
    "birthdate": "2001-01-01",
    "address": {
      "streetAddress": "386 Point McKay Gardens Northwest",
      "postalCode": "T3B 4V8",
      "city": "Calgary",
      "country": "GB",
      "state": "CA-AB"
    }
  },
  "paymentInfo": {
    "encryption": "aes256",
    "cardNumber": "{{PAN}}",
    "expiryDate": "{{EXPDATE}}",
    "cardsecuritycode": "{{CVV}}",
    "financialInstitution": "{{CARDBRAND}}",
    "type": "Credit Card",
    "address": {
      "streetAddress": "386 Point McKay Gardens Northwest",
      "postalCode": "T3B 4V8",
      "city": "Calgary",
      "country": "Canada",
      "state": "CA-AB"
    }
  },
  "orderInfo": {
    "orderType": "Regular Order",
    "totalOrderAmount": 25,
    "currency": "CAD",
    "waitlist": false,
    "membership": false,
    "mailTickets": false,
    "gift": false,
    "group": false,
    "additionalTicketHolder1": "",
    "additionalTicketHolder2": "",
    "additionalTicketHolder3": "",
    "orderLineItems": [
      {
        "quantity": 1,
        "packId": "a0GOJ00000AD2Cq2AL",
        "amount": 25,
        "isBundle": false
      }
    ]
  },
  "marketingInfo": {
    "textOptIn": false
  }
}

9. cURL Request for Testing

The following cURL example demonstrates how to submit a test transaction to the Paytia Proxy Gateway API.

curl --location 'https://accounts.paytia.com/portal/api/payment_service' \
--header 'X-API-KEY: 5aAAAA287f5712adAAAAAAAAAAAAAAA41522c05cbf5dc9aeede05ddfec1d3' \
--form 'reference_id="BT202968"' \
--form 'amount="10.00"' \
--form 'agent_id="10000"' \
--form 'firstname="Thirdpartytwo"' \
--form 'lastname="User"' \
--form 'billingcountry="GB"' \
--form 'billinghouseno="12"' \
--form 'billingcity="Southampton"' \
--form 'billingpostcode="302020"' \
--form 'shippingcountry="GB"' \
--form 'shippingfirstname="fsdffd"' \
--form 'shippingcity="Southampton"' \
--form 'shippinghouseno="44"' \
--form 'shippingpostcode="302020"' \
--form 'transaction_flag="0"' \
--form 'web_agent_form="1"' \
--form 'start_date="2025-10-15"' \
--form 'intervalcount="3"' \
--form 'end_date="2025-11-06"' \
--form 'subscription_amount="12"' \
--form 'interval="daily"' \
--form 'billingstate="fgfdgfdgfdgfggd"' \
--form 'country_phonecode="IN"' \
--form 'phone_number="9149026516"' \
--form 'email_address="testAAAAAA@gmail.com"' \
--form 'merchantcode="Proxy payment gateway"' \
--form 'shippingdescription="ewewqewqed"' \
--form 'customer_landlinecode="GB"' \
--form 'customer_landline_number="8787687691"' \
--form 'account_number="998877665544332211"' \
--form 'billingdescription="Description"' \
--form 'psp_posturl="https://qxAAAAAAA98AAAA.execute-api.us-east-1.amazonaws.com/AAAA5"' \
--form 'metadata="{\"programId\":\"a0AOJ00000Av9s12AB\",\"sourceCC\":\"Phone Order\",\"sourceDetail\":\"Call Centre\",\"sourceName\":\"A365\",\"contactInfo\":{\"firstName\":\"Bonita\",\"lastName\":\"Cooke\",\"email\":\"ian.cooke@answwer365.ca\",\"primaryPhone\":\"403-771-1252\",\"birthdate\":\"2001-01-01\",\"address\":{\"streetAddress\":\"386 Point McKay Gardens Northwest\",\"postalCode\":\"T3B 4V8\",\"city\":\"Calgary\",\"country\":\"GB\",\"state\":\"CA-AB\"}},\"paymentInfo\":{\"encryption\":\"aes256\",\"cardNumber\":\"{{PAN}}\",\"expiryDate\":\"{{EXPDATE}}\",\"cardsecuritycode\":\"{{CVV}}\",\"financialInstitution\":\"{{CARDBRAND}}\",\"type\":\"Credit Card\"}}"'

10. Card capture in real-time.

11. Security and Compliance Notes

• Card data is never exposed to your application or staff

• Sensitive values are injected only at the point of secure transmission

• Encryption is applied before data leaves Paytia

• Reduces PCI-DSS scope and compliance burden

• Fully aligned with Paytia’s PCI-DSS Level 1 service provider controls

12. Summary

The Paytia Proxy Gateway is designed for organisations that need maximum control with minimum risk. By separating card capture from payload design, it enables secure, compliant, and highly adaptable payment integrations across complex system environments.

If you need a gateway that fits your systems — rather than forcing your systems to fit a gateway — the Proxy Gateway delivers that flexibility securely and at scale.
